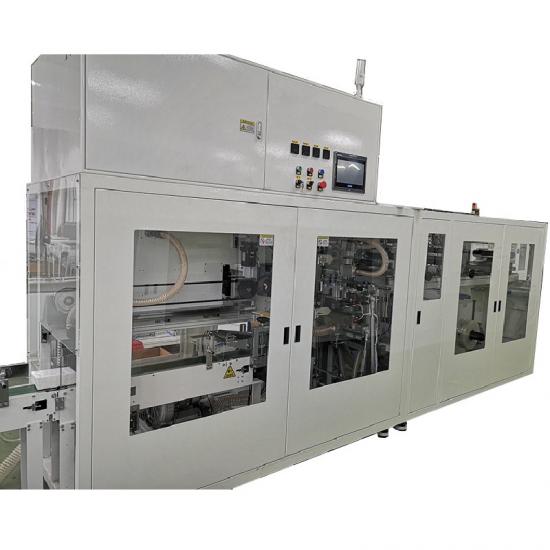

Automatic Package Machine for Cotton Tissue

STC-S50 - M automatic cotton tissue packing machine can achieve soft cotton cloth laminated quantitative automatic sack packing.

  • Item NO.:

    STC-S50-M
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    Negotiable
  • Product Detail


STC-S50 - M Automatic Cotton Tissue Packing Machine can achieve soft cotton cloth laminated quantitative automatic sack packing, the layer of embankment filling, automatic push material, bag roll automatic running, on-line automatic bag making, automatic print code, automatic fill bag, automatic sealing, the finished product discharging, automatic suction waste during process of formation,automatic feeding, packing, discharging of processes.


Feature

1.The whole machine is composed of automatic feeding unit, packing unit and bag supply unit

2.Independent drive with full servo, short response time; Equipped with medium-sized bus PLC, more stable performance when running at high speed;

3.Online bag making, bagging and sealing are all completed automatically, which greatly improves the production efficiency of the equipment.

4.Adopt 10 inch LCD touch screen, easy to operate when setting parameters and changing

5.With bag drop detection, do not push the material in the case of unsuccessful bag opening, and automatically getting bag

6.The sealing of bag making adopts Omron temperature control system to control the heating tube. The temperature stability deviation is ± 1 ° to ensure the success rate of bag making

7.It has the function of material inspection. When there is no material, the bag can be taken  waiting for material

8.Connect to front and rear equipments.


Technical Parameter

Outer roll diameter

≤φ600mm

Inner roll diameter

φ76-φ80mm

Packing speed

 35-60PCS/minaccording to product

Package film thickness

 0.04-0.08mm

Package film material

PE Double-sided heat sealing film (recommended)OPPVarious composite heat sealing films

Product packaging specification

L100-200mmW70-110mmH30-100mm

Power

12.5Kw

Package qualification rate

≥98%

DIM

5400mm×1200mm×2100mm

Supply power

380V 50HZ

Air pressure

6kg/cm20.45m3/ min

Net weight

3000Kg


Application:
