V-P5D-UT Intelligent Ultrasonic Detector

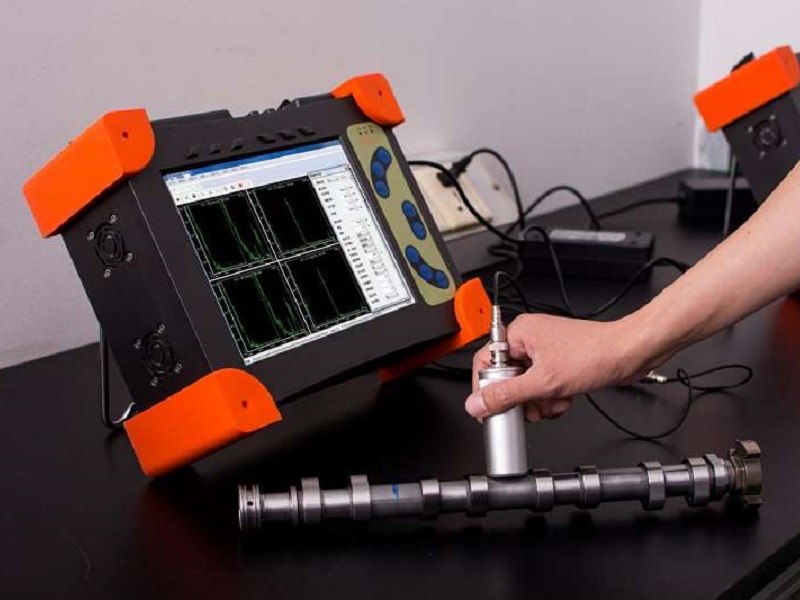

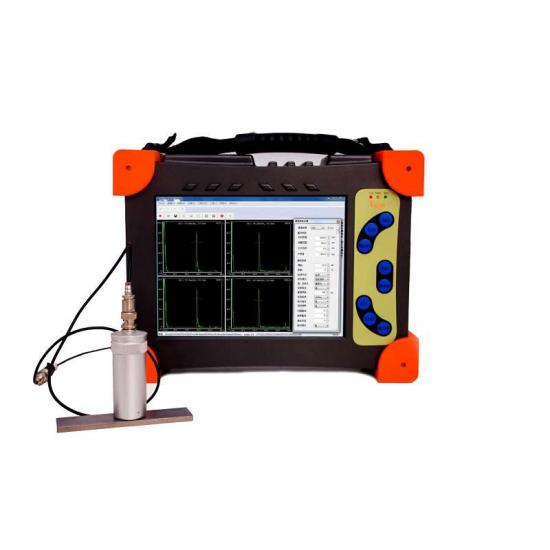

The main purpose of the intelligent ultrasonic detector V-P5D-UT is to provide high level flaw detection performance with a simple instrument.

  • Item NO.:

    V-P5D-UT
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Product Detail

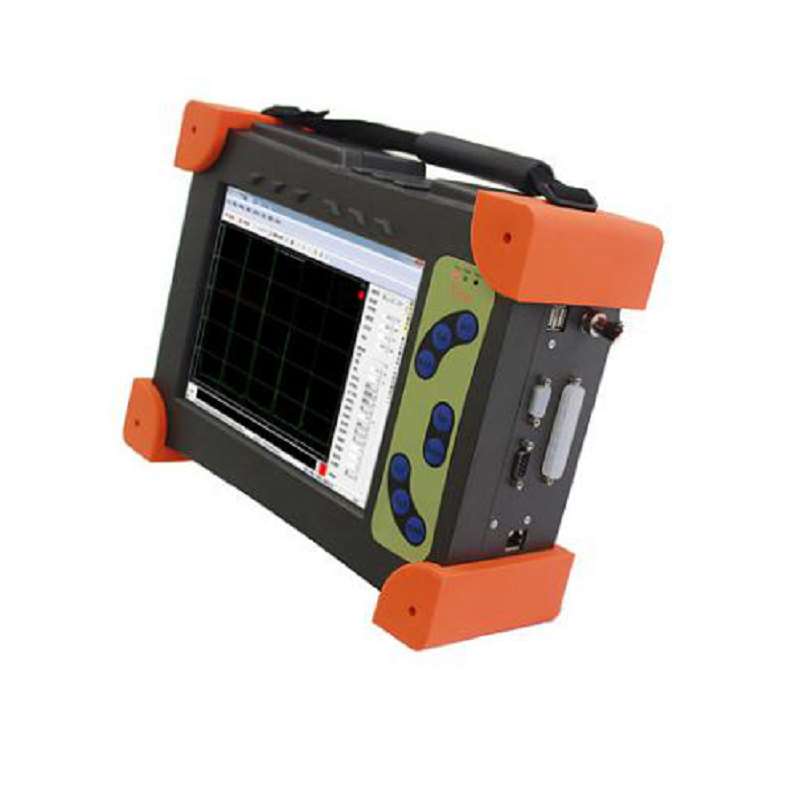

V-P5D-UT Intelligent Ultrasonic Detector is simple and intuitive, convenient and practical, the ergonomically design of the product enable all personnel, no matter an experienced or completely new of ultrasonic examination, can use this flaw detector freely. V-P5D-UT Intelligent Ultrasonic Detector meets the EN12668-1 standards, with complete range of standards and optional flaw detection functions, it also has multiple on-board report making tools. The comprehensive data filling system of the detector enable users to collect and report high quality inspection data easily. The instrument is sturdy and durable so it can be utilized almost in any testing environments.



Technical Parameters

USB port

2

RS232 port

1

Video output

Standard VGA out put

Alarm output

8

Start input

8

Coder input

1

Work Temp.

10°C50°C

Relative Humidity

Under 80%

Size

W 320 mm * H 235 mm * T 103 mm

Weight

3kg, Li-battery included

Language

English / Chinese

Data Storage

30GB

Battery ON time

8hours

Power supply

200 VAC 240 VAC50 Hz 60 Hz

Adapter:

DC15.6V6A

Monitor

10.4 Screen

Detection Channel

1~4

Repeat rate

10 Hz 2000 Hzincrement 10 Hz

Pulse width

25 ns 5000 ns0.1 MHzAdjustable

Damping

50200Ω

Gain

0 dB 110 dB

Receiver bandwidth

0.2 MHz 26.5 MHz,–3 dB

Detection wave

Full wave, positive half wave, negative half wave, radio frequency wave

System Linear

Level:±0.5 % FSW

Resolution

0.25 % FSHAmplifier precision ±1 dB

Restrain

0 % ~ 80 % screen with visual alarm

Amplitude measure

0 % ~ 110 % screen , 0.25 % resolution

Automatic calibration

Sound speed, zero offset, vertical beam (1st bottom echo, or echo to echo), angular beam (range or depth)

Sound speed

635 m/s to 15240 m/s

Zero offset

0 µs 750 µs

Display delay

-59 mm to 13401 mmLongitudinal wave velocity in steel

Refract angle

0° 90°, Increment 0.1°

Detect Gate

A/B Gate plus bottom wave following gate I

Gate starting point

Variable over the entire display range

Gate width

Variable in the area between the start of the gate and the end of the display range

Gate height

Variable in 2%~95% screen

Alarm

Positive and negative thresholds, small depths (gate 1 and gate 2)




Application Areas

· Automotive Industry: Hub Bearings, Engine Cylinder Liners, Piston Rings, etc

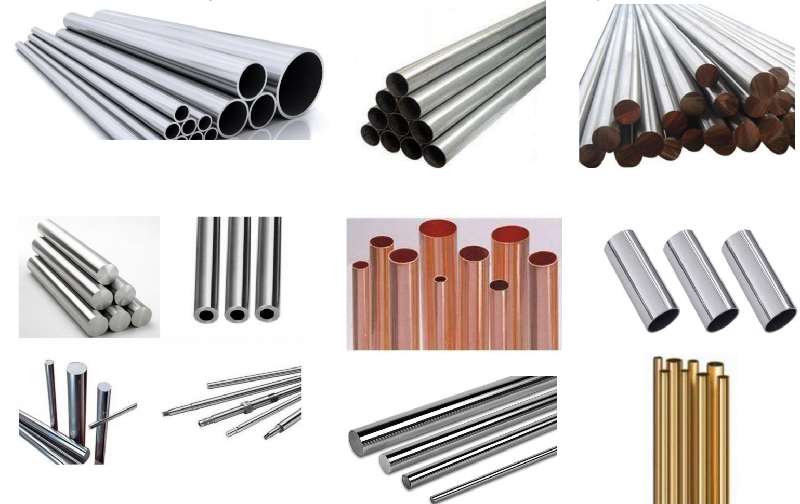

· Aviation Military Industry: Seamless Steel Pipe, Seamless Welded Pipe, Helicopter Spindle, etc

· Mechanical Hardware Industry: Rail, Bar, Wind Power Bolt, Billet, Steel Plate, etc

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Cylinder Liner Eight Frequency Inspection System
Cylinder Liner Eight Frequency Diagnose Machine
Automatic Cylinder Liner Eight Frequency Inspection System is a full-automatic crack diagnose detection machine integrating light, electricity and machinery.
Roller Ultrasonic Testing Machine
Roller Ultrasonic Detection Machine
Roller ultrasonic testing machine is mainly used to detect a variety of internal defects of cylindrical workpiece, such as: weld, crack, inclusion, folding, porosity, sand, etc.
Eddy Current and Ultrasonic Testing System
Roller On-line Intelligent Comprehensive Detection System
Automatic Roller Eddy current / AI CCD Image System is a Full-automatic detection machine which integrates Light, electric and mechanic.
Roller-CCD Image Inspection Equipment
Roller-CCD Image Inspection System
Roller-CCD Image Inspection Equipment is used for defects detection and hardness detection of bearing roller products.
Automatic Multi-Functional Cleaning Machine
Automatic Roller Cleaning Machine
Roller cleaning Machine is a multi-functional cleaning machine. It consists of Cleaning machine and Air-drying Machine.
Automatic Roller Dimension Detection Machine
Automatic Roller Dimension Detection Machine
Roller Dimension Detection Machine is an automatic detection system integrates roller feeding, detection and sorting.
Eddy Current Sorting System
Roller Hardness Sorting Machine
The principle of the Roller hardness sorting machine lies in under certain condition, iron/steel pieces of the magnetic conductivity has a direct corresponding relationship with hardness, materials, defects etc.
Intelligent Multi-frequency Eddy Current Detector
V-P5D-ET Intelligent Multi-frequency Eddy Current Detector
The V-P3D-ET multifunctional intelligent instrument adopts the "non-contact and non-destructive" eight-frequency electromagnetic field (MultiFreqency-EM) detection technology to detect the aerospace, automobile, railway, metallurgy, precision machinery and other industries on metal components and metal parts.
