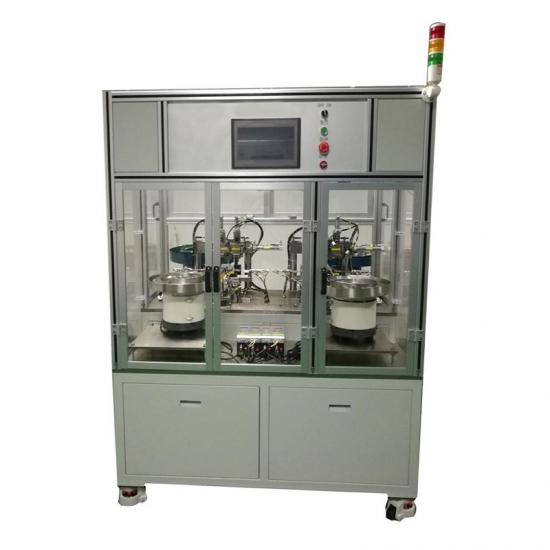

Automatic Switch and Socket Assembly Machine

Automatic Switch and Socket Assembly Machine can assemble switch and socket components and test, it is unmanned operation, all the work section can be designed as your process of product.

  • Item NO.:

    STC-1301
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Product Detail

Automatic Switch and Socket Assembly Machine



1. Automatic Switch and Socket Assembly Machine is designed and manufactured specifically for the switch socket equipment industry.


2. Automatic feeding, assembly/ one-time processing complete.


3. Automatic detection, automatic start when material is detected, automatic stop when lack of material.


4. Automatic counting , set output.


5. Using the touch screen, intuitive interface, simple and safe operation.


6. Abnormal shutdown, automatic alarming when reporting abnormal information.


Technical Parameters:

Model #

STC-1301

Production Efficiency

900-1200 pcs/Hour

Power Supply

220V 50/60Hz/ 3.0KW

Air Volume

120L/Min

Air Supply

0.5-0.7Mpa

Feeding Mode

Vibrating Feeder

Equipment Weight

300Kgs

Equipment Size(L*W*H)

1700mm*1400mm*1510mm(For reference only)

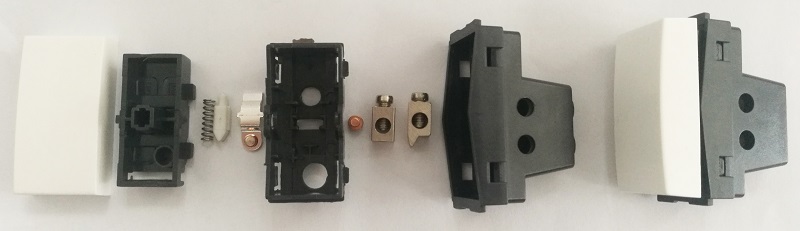

Application
