American Type Hose Clamp Assembly Machine

The machine can assemble various types of American hose clamps, large American style, small American style, tube bundle (buckle cover type), etc.


  • Brand:

    FRAND
  • Item NO.:

    STC-1802
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    120days
  • Product Detail

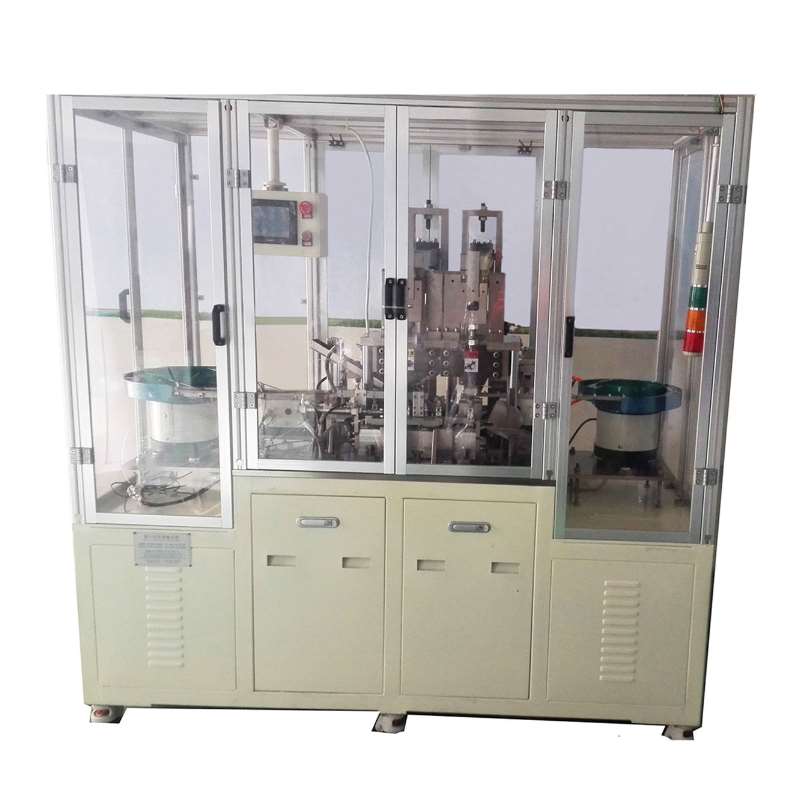

American Type Hose Clamp Assembly Machine

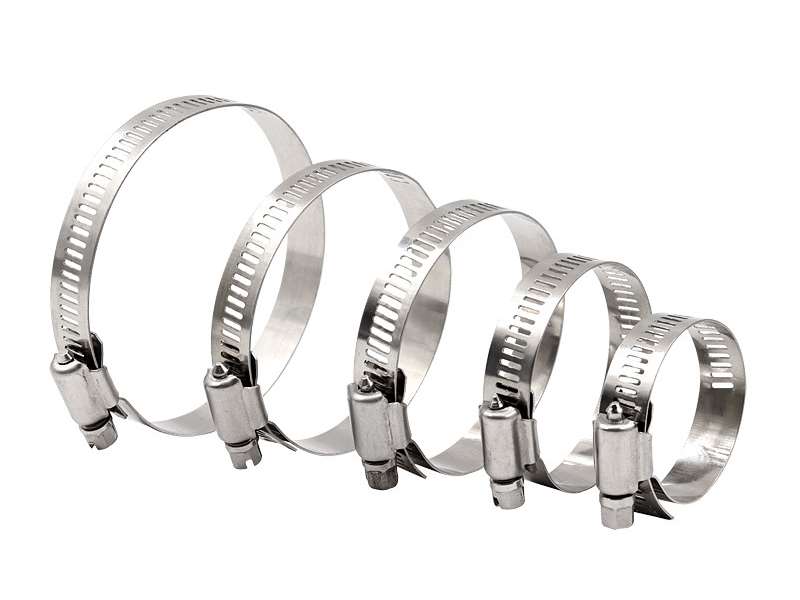

Our American Type Hose Clamp Assembly Machine makes the occlusal groove on the steel belt penetrated and formed by hollow punching. There are two types of grooves: rectangular hole and willow hole. The worm gear screw and screw thread on the hose clamp embedded in the groove. The screw is commonly used to tighten the diameter of the hose clamp steel band to lock the target.

The hose clamp is widely used in the hose connection of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.


Products Features:

1. The linear structure is simple and easy to install and maintain.

2. Operating parts adopt parts of world famous brands.

3. Highly automated and intelligent operation, no pollution.


Technical Parameters:

Product name

Automatic American Type Hose Clamp Assembly Machine

Size

2600mm(L)*1200mm(W)*1800mm(H)

Weight

1 Ton

Work Area

5000mm(L)*3000mm(W)

Power

Single-phase power 115v60Hz ANSI electric standards

Pressure

0.5Mpa-0.7Mpa 72.5-101.5 PSI

Free Twisting Force

0.8-1.3N/M (7.08-11.505 in/ibs)

Destructive Twisting Force

more than 13.56N/M (120 in/ibs)

Equipment Failure Rate

less than 0.5%

Efficiency

1000pcs/hour

Warranty Period

one year

Additional Serves

Professional technology training

Brand of Main Parts

SMC Japan, SIEMENS Germany, Panasonic Japan, Keyence Japan, Schneider France, BASLER Germany,


Application:



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

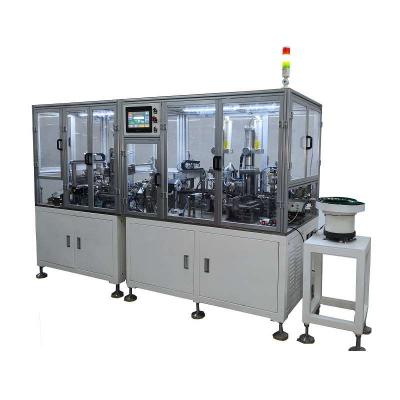

Automotive Hose Clamp Assembly Production Line
