Automatic Roller Cleaning Machine

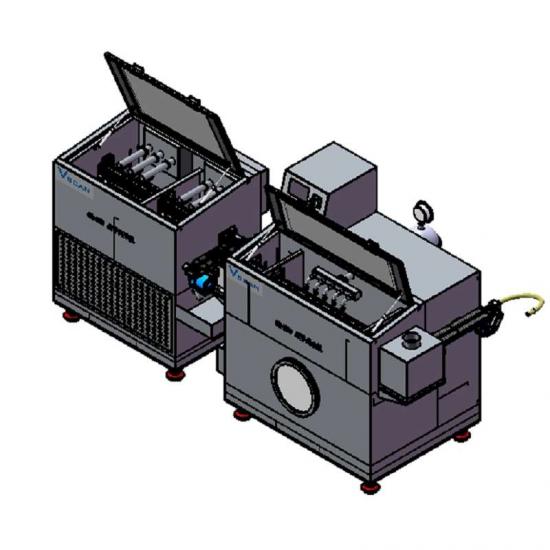

Roller cleaning Machine is a multi-functional cleaning machine. It consists of Cleaning machine and Air-drying Machine.

  • Item NO.:

    YZ-CLEAR
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Product Detail

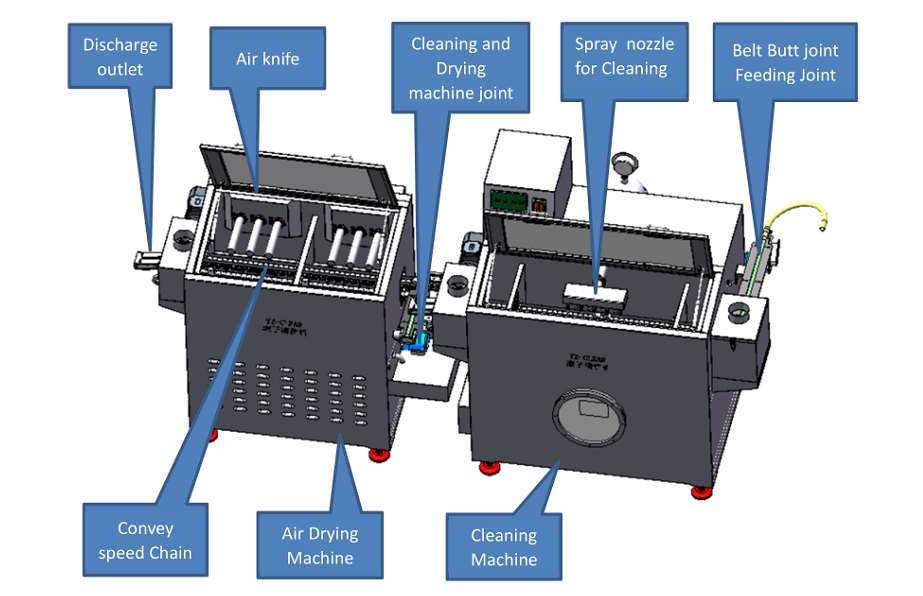

Automatic Roller cleaning Machine is a Multi-Functional Cleaning Machine. It consists of Cleaning machine and Air-drying Machine. Workpiece is transferred into the cleaning machine through the speed chain, cleaned by the heated cleaning liquid, it is cleaned thoroughly. Then the workpiece flow through the middle belt butt section to the air dryer section, with speed chain roller rotation, the workpiece is dried completely.


Technical Parameter:

Detection Object:Cleaning,Ø5-60

Speed:180pcs/min

Size:3028*1180*1500mm

Power:380V,50Hz

Bump power:380V ,0.75KW

Fan power:380V ,1.5KW

Heating Rod:380V ,1.5KW
