Roller-CCD Image Inspection System

Roller-CCD Image Inspection Equipment is used for defects detection and hardness detection of bearing roller products.


  • Item NO.:

    YZ-CCD-M30
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Product Detail

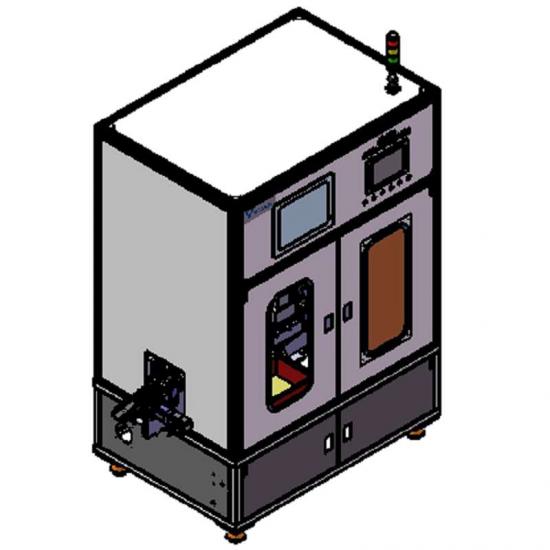

Roller-CCD Image Inspection Equipment is used for defects detection and hardness detection of bearing roller products. It can be integrated to customer‘s existing production line to realize whole-line automation and real time upload the detection data to the customer's cloud system.




Equipment Performance:

·Inspection:Appearance, Ø5-30

·Speed: 180pcs/min

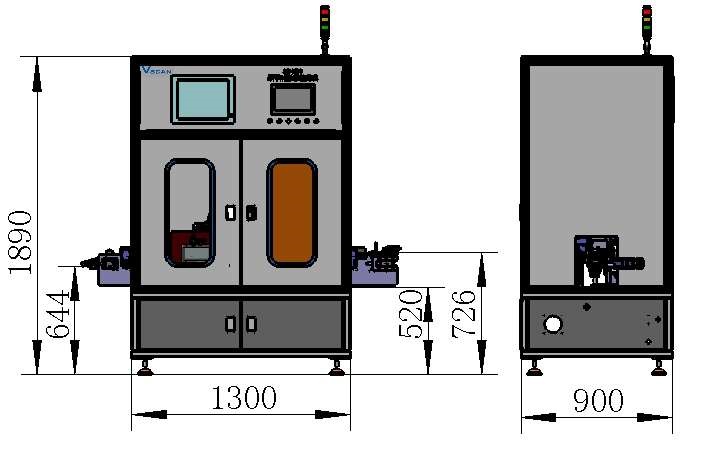

·Equipment Size: 1300*900*1890mm

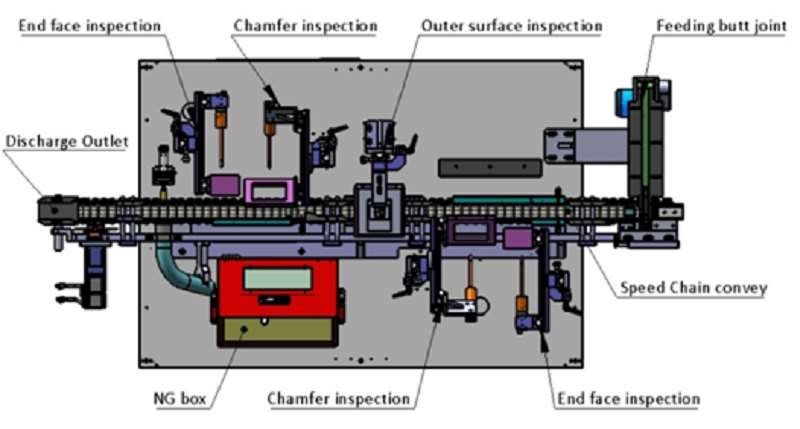

·Testing: Cylindrical surface, Upper and lower end face, crack in Chamfer, bumping, pitting, scratch

·Air source:≥0.4MPa



Special Characteristic:

Digital parameter adjustment;

Remote monitoring help system;

Realtime test Display;

EN/CN operation interface;

Malfunction Intelligent Alarm

Multiclass interface reservation for Mechanical integration

Window can Alarm respectively with different signal

Windows operation interface, Modular man-machine dialogue
