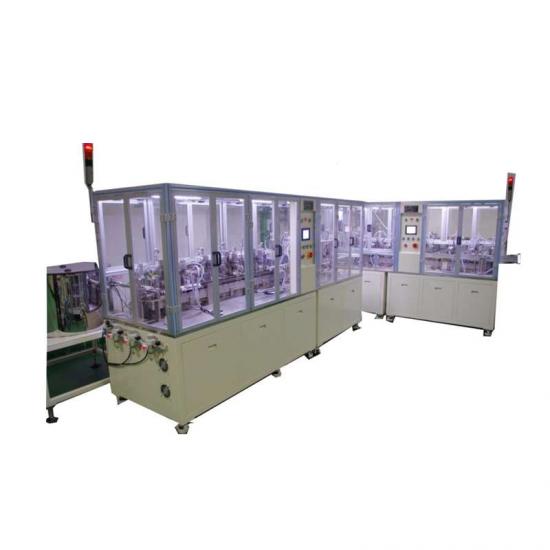

Electric Relay Automatic Assembly Machine

Our Electric Relay Automatic Assembly Machine adopts pneumatic execution structure design which is running at high-speed, stable quality, energy and cost saving.

  • Brand:

    FRAND
  • Item NO.:

    STC-1501
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Product Detail

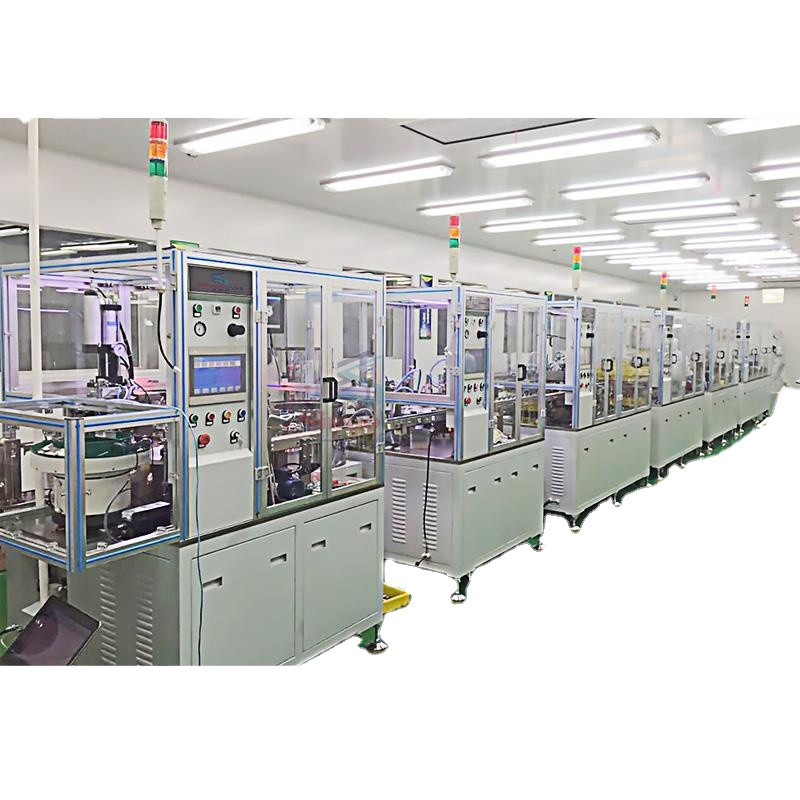

Automotive Start Relay Production Line


This machine is an automatic relay assembly machine, divided into "U-shaped production line front" STC-1509-1 top cover assembly assembly machine" and "U-shaped production line back" STC-1509-2 coil assembly assembly machine. Covers, springs, contacts, contact terminals M, contact terminals B, square nuts, yokes, coil formers, gaskets, springs, iron cores and other materials are automatically loaded with a vibrating hopper, automatically inserted, and detected after completion and unloading automatically.


Products Features:

1. The linear structure is simple and easy to install and maintain.

2. Operating parts adopt parts of world famous brands.

3. Highly automated and intelligent operation, no pollution.


Technical Parameters:

Work efficiency

1000-1200 pcs/hour

Applicable power supply

220VAC, 50HZ

Equipment power

6000W

Applicable air source

0.500.80Mpa (0.50Mpa is the best)

Equipment length

7000mm

Equipment width

4630mm

Equipment height

1800mm

Warranty period

One year

Additional services

Professional English technology training

Brand of Main Parts

SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.

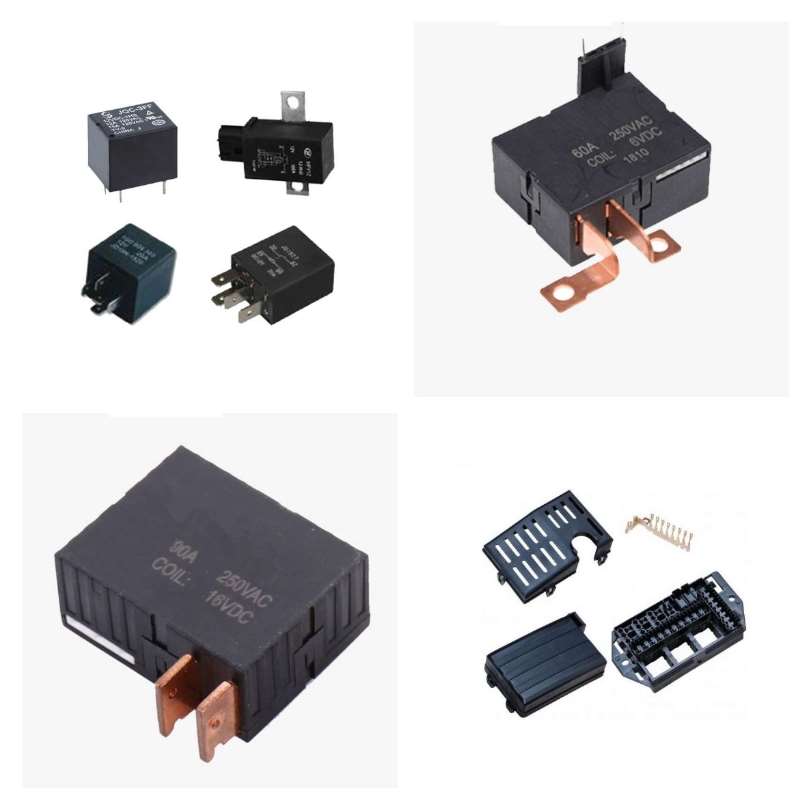

Application
