6-spindle CNC Winding Machine

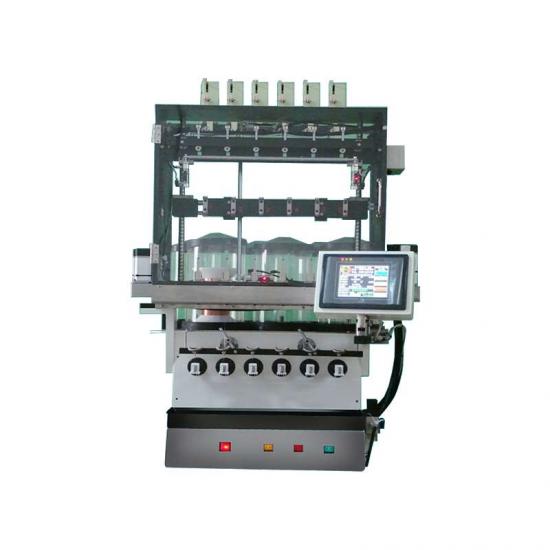

The typical model of STC-0672,  6-spindle CNC winding machine

  • Item NO.:

    STC-0672
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15days
  • Product Detail


1. Applicable coils


2. Model Selection

The typical model of STC-0672,  6-spindle CNC winding machine



3. Processes of the machine

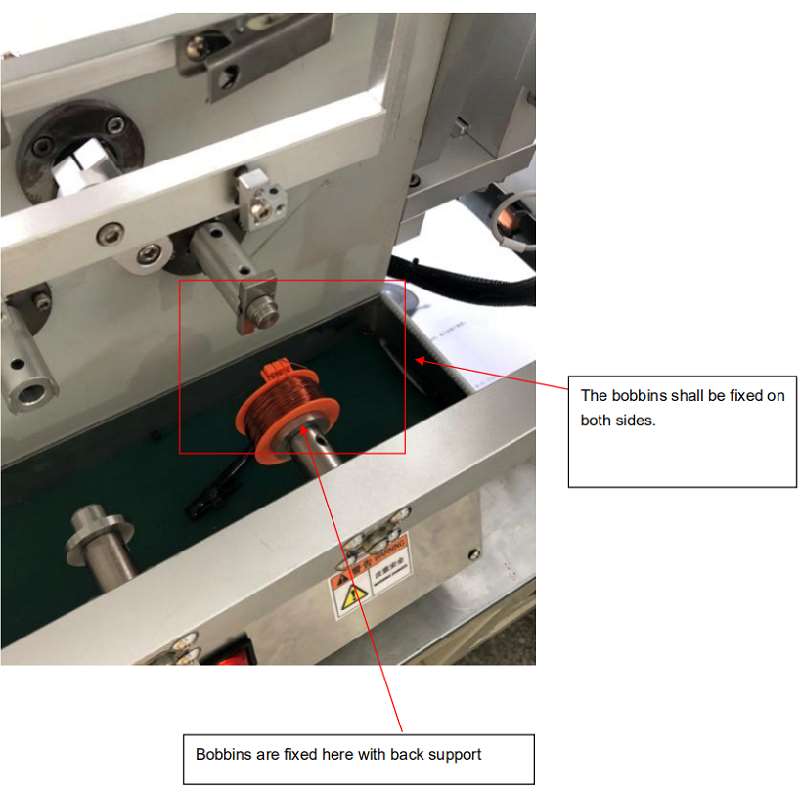

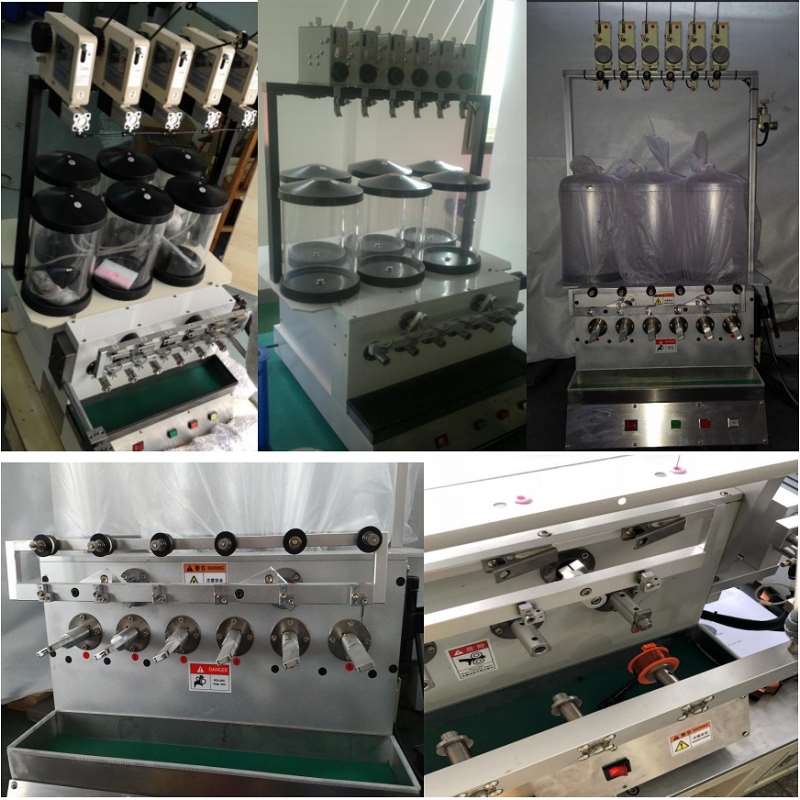

1)4 pcs fixtures  are fixed on the fixture and then mounted to the main spindles of the winding machine. It is the style of “quick change over”.

2) The machine is semi-automation, and the motion of wire cutting and bobbins loading/unloading are manual.

3)Automatic Winding, manual cutting.


4. Characteristic of  6-spindle CNC Winding Machine

1)The model is Synergy original. We have been refining it for 10 years to make it perfect.

2)It is applicable for the production mode of “Multi-type & small batch”. The  quick-change tool transfer system solved the problem of "multi-objective production" to vastly reduce down-time for specification changeovers

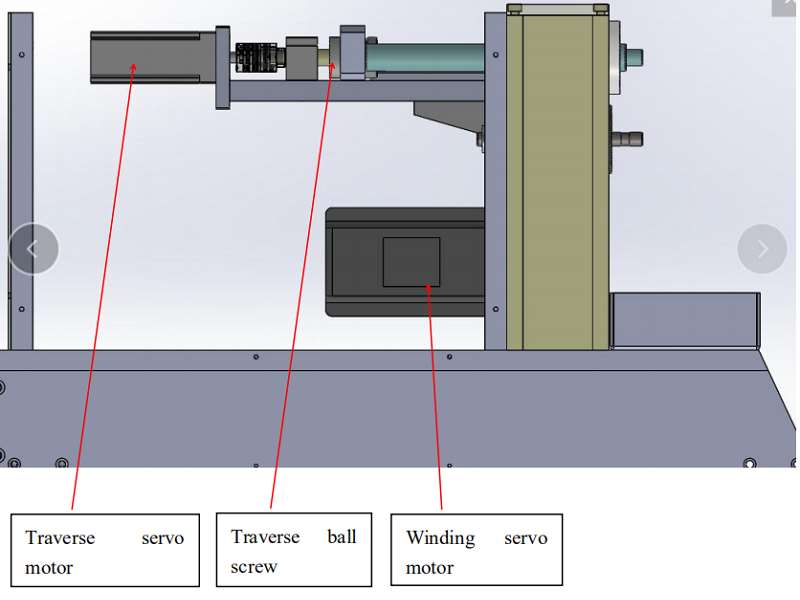

3)The motion of traverse,winding,  are all driven by servo motors. The precision rolled ball screw works together with the servo motor to make sure the traverse motion is uniform and flat.

4)It best fit for the winding of coil of 13F relay and one operator can take care of 2-3 machines.

5)Consideration ease of operation and maintenance, this machine has a simple construction by reduction of the total number of parts. In addition, the total machine footprint is compact.

5.Specifications:

Model #

STC-0672

Spindle number

6

Spindle speed

15000RPM

Spindle pitch

72mm

Wire range

0.25-1.5mm

Max. coiling diameter

Ф70mm

Max. coiling width

1-80mm

Power consumption

2500 w

Machine size

520mmW×580 mmD×1200 mmH

Machine weight

85 kg

Air pressure

0.49-0.59mpa

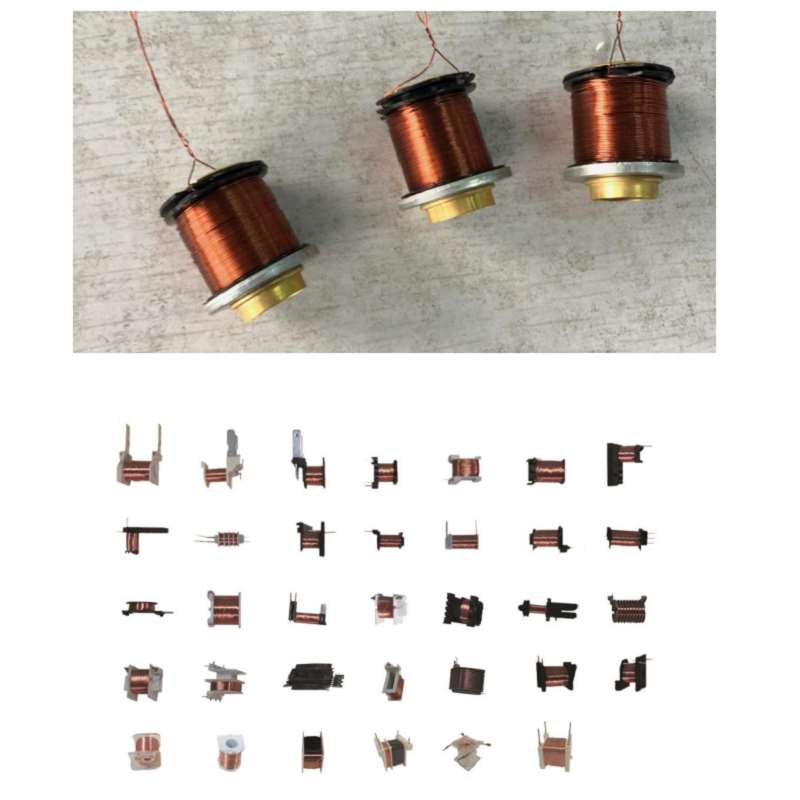

6.This linear winding machine is to replace the  traditional  flying fork winding  machine to produce the magneto coils as below pictures. The advantages of this machine :

Faster

Better

More Cost-effective
