Automobile Electronics Full Automatic Coil Production Line

Our Full Automatic Coil Production Line is mainly composed of winding and soldering, all the key components adopt international famous brands to guarantee the quality of winding and soldering.

  • Item NO.:

    STC-1903
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Lead Time:

    90days
  • Product Detail

Full Automatic Coil Production Line

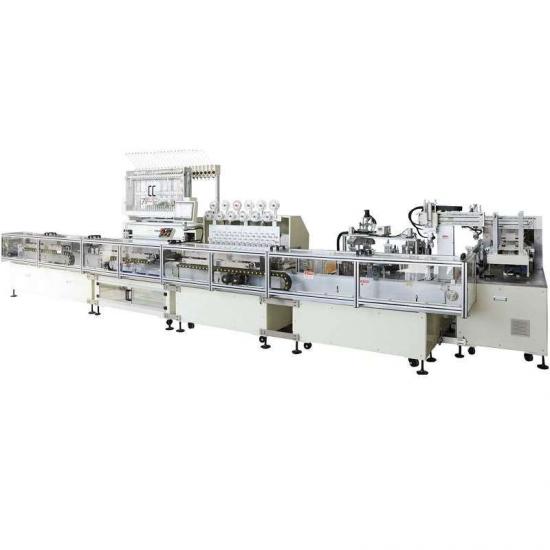

Multiple Automatic Winding and Wrapping Machines and one automatic plate swing machine form an assembly line. The first machine automatically loads the material through the vibrating plate, and the machine is rigidly connected between the machines to automatically flow the products from the previous station to the next station until the pan is completed, so that the entire production line is produced in the same cycle time. The Full Automatic Coil Production Line is suitable for the continuous production of multi-winding coils in large quantities and a single model.



Technical Parameter:

Model #

STC-1903

Control System

YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)

Spindle Number

24

Spindle Pitch

36mm

Spindle speed

MAX.20,000RPM

Moving precision

±0.01mm

Wire range

0.02-0.5mm

Max. coiling diameter

Ф28mm

Max. coiling Width

40mm

Traverse moving range

X80 mmY60mmZ60mm

Revolution angle

± 1°

End processing number

Not limited

End processing speed

Max. 150/minute

End process angle

Vertical, Horizontal, 45 °as requested

Station number of soldering machine

8

Max. temperature of the soldering pot

520

Machine Size

3800(L)*2500(W)*1800(H)mm

Machine weight

2400kg

Power voltage

AC 380V 50HZ

Power consumption

7KVA

Air pressure

0.45-0.65Mpa
