Automatic Integrative Taping and Winding Machine

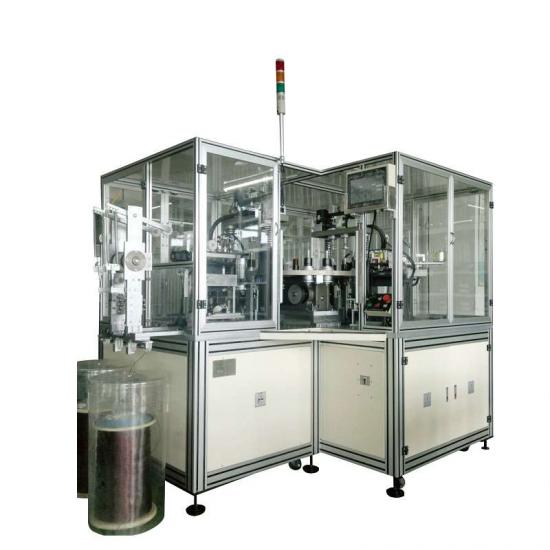

Solenoid coil Integrated automatic winding machine specially designed for the solenoid switch coil of the automobile starter, including the integrated function of winding and covering. It is a customized winding machine with strong specificity and powerful functions.

  • Item NO.:

    STC-1901
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Lead Time:

    90days
  • Product Detail

Solenoid Coil Integrated Automatic Winding Machine



1.Solenoid Coil Integrated Automatic Winding Machine contains functions as: primary (suction and pull) winding, rubber covering, secondary winding (holding), secondary covering.


2. The actions that can be completed in the winding part: automatic up and down winding, winding without overlapping, automatic troughing, automatic winding, automatic cutting and preliminary trimming, and preventing the winding package from loosening.


3. The rotating worktable automatically rotates and rotates alternately, and the primary (suction and pull coil) winding can be loaded and unloaded at the same time, and the rubber cloth (including the masking paper), and the secondary (holding coil) winding can be greatly improved.


4.The work was originally completed by 4 people or more now can be completed by one person on Automatic Winding And Taping Integrated Machine.


5.The tensioner is precisely controlled by Mitsubishi magnetic powder wheels to ensure that the tension of the coil during the winding process is sensitive and stable on the monitor , it can display: spindle rotation direction, number of coils, angle, winding time, etc., when a failure occurs, the text automatically prompts the content of the failure.


6.Automatic thread trimming, no waste copper wire and saving cost.



Technical Parameter:

Model

STC-1901

Control System

YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)

Spindle Number

2

Spindle Pitch

120mm

Spindle Speed

Max 6000 RPM

Wire Range

0.04-0.3mm

Max Coiling Diameter

Ф80mm

Max Winding Width

80mm

Winding Direction

Clockwise/Counter-clockwise Set Freely

Moving Precision

±0.01mm

Machine Size

2500(L)*2500(W)*1800(H)mm

Machine Weight

2000KGS

Power Voltage

AC 380V 50HZ

Air Pressure

0.45-0.65Mpa
