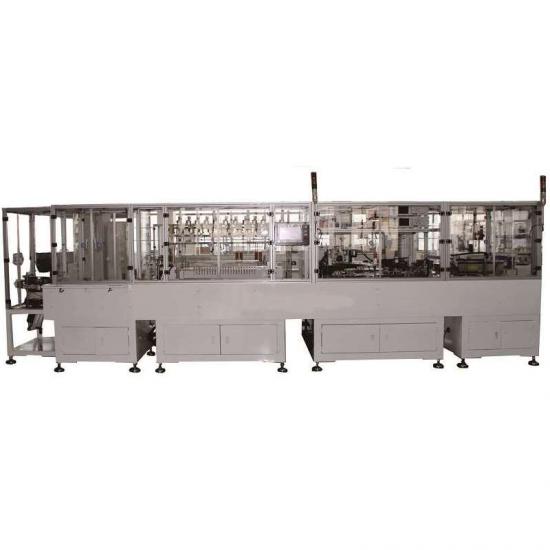

Automatic High Precision Coil Winding Machine

Full Automatic High Precision Coil Winding Machine can complete winding of rectangular,circular and long circular coils.

  • Item NO.:

    STC-1909
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Lead Time:

    90days
  • Product Detail

High Precision Densely Packed Winding Production Line

Machine Features:

1. This Coil Winding Production Line is applicable for large size bobbins, such as contactor coil and solenoid valve coil.

2. Multiple processes can be completed on the line including automatic vibration feeding, winding, taping, soldering, testing, terminal reforming ,laser marking ,printing, palletizing and so on.

3. There are three types of soldering processes: dip soldering, Frequency Welding, Resistance Welding and LBM(Laser Beam Welding). They are determined based on the coil specifications

4. The Automatic Winding Machines with big pitch can be connected in parallel to improve capacity and efficiency.

5. The state-of –the-art controller of MECHATROLINK-II is employed to equip the winding machine.


Technical Parameters:

Model #

STC-1909

Control System

YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)

Spindle Number

8,12,16,24,32

Spindle interval

25,30,40,50,60,80,100,120mm

Spindle speed

Standard: 1,000RPM, MAX:3,000RPM

Moving precision

±0.01mm

Wire diameter

Ф0.2-Ф0.6mm

Number of layers

Max 30

Spindle motor power

1.8KW/2KW/3KW/4KW/5KW

Total motor power

3KW/4KW/5KW/6KW/7KW

Revolution angle

± 1°

End processing number

Not limited

Max swing diameter

Ф20mm,Ф25mm,Ф35mm,Ф45mm,Ф55mm,Ф75mm,Ф95mm,Ф115mm

Power supply

AC 380V 50HZ

Air pressure

0.4-0.6Mpa
