Dual-Spindle Flying Fork Winding Machine

Dual-Spindle Flying Fork Winding Machine


  • Item NO.:

    STC-1906
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Lead Time:

    90days
  • Product Detail

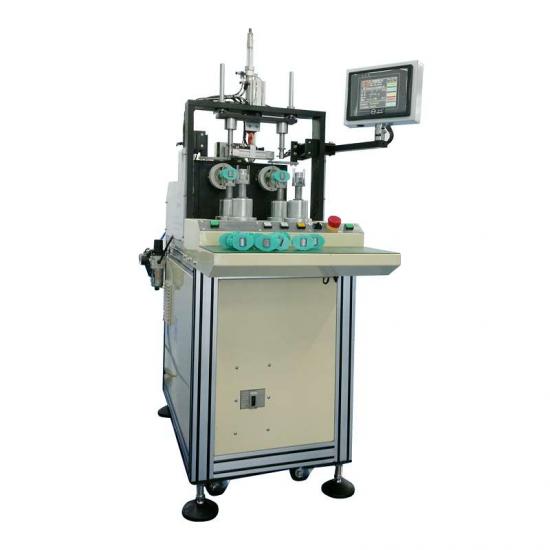

Dual-Spindle Flying Fork Winding Machine


Machine Features:


1.The Flyer Fork Winding Machine is applicable for small-amount winding for small and medium-sized motor bobbin with high precision and high efficiency.


2.The machine can execute the auto actions of Winding, Pole change, Coil hooking, Coil cutting and Auto converting and Exchanging. The automation degree is high and what has to be done by people is to only load and unload the bobbins.


3.All the key parts are imported from Japan, Italy and US including Panasonic servo system,SKF bearing ,Unitta Belts,SUNX sensor and CKD/SMC Pneumatic parts.


4.When winding, the end of the wire is kept all the time till the end of the winding process. The function not only saves the operation time for loosing the end wire, but also avoids the occurrence of undesired entry of the wire end into the coils.


5.Panasonic servo motor control (with speed converter inside) is employed for angle rotation, making it possible to turn to any angle desired and no locking is necessary.


6.The interface is in Chinese and English version is optional. The JOG function enables automatic programming when winding process is ongoing. (More than 90% of the movements can be done without manual programming.


7.LCD monitor is equipped, which conveniently shows the data for the current operation of the machine such as the rotary direction of the main spindle, number of loops, angles and winding time and etc. Texts are automatically shown when false occurs.


8.When winding some bobbins, the related program can be called directly.Besides 60 winding programs that stored in the memory of the machine, a computer can be connected to it to realize limitless storage.


9.Optimized design of winding fixture for quick changeover.


Technical Parameters:

Model #

STC1906

Control system

Meteor F2 controller

Spindle number

2

Spindle pitch

250mm

Spindle speed

MAX.7,000RPM

Wire range

0.04-1.2mm

Max. core outer diameter

Ф120mm

Max. core thickness

50

Slot number

1-36

Max. winding width

55mm

Winding direction

Clockwise /counterclockwise set freely

Spindle position

± 1°

Table position

± 1°

Machine size

600(L)*1600(W)*1400(H)mm ,

Machine weight

250kg

Power voltage

AC 220V 50HZ

Power consumption

1.5 KVA

Air pressure

0.45-0.65Mpa
