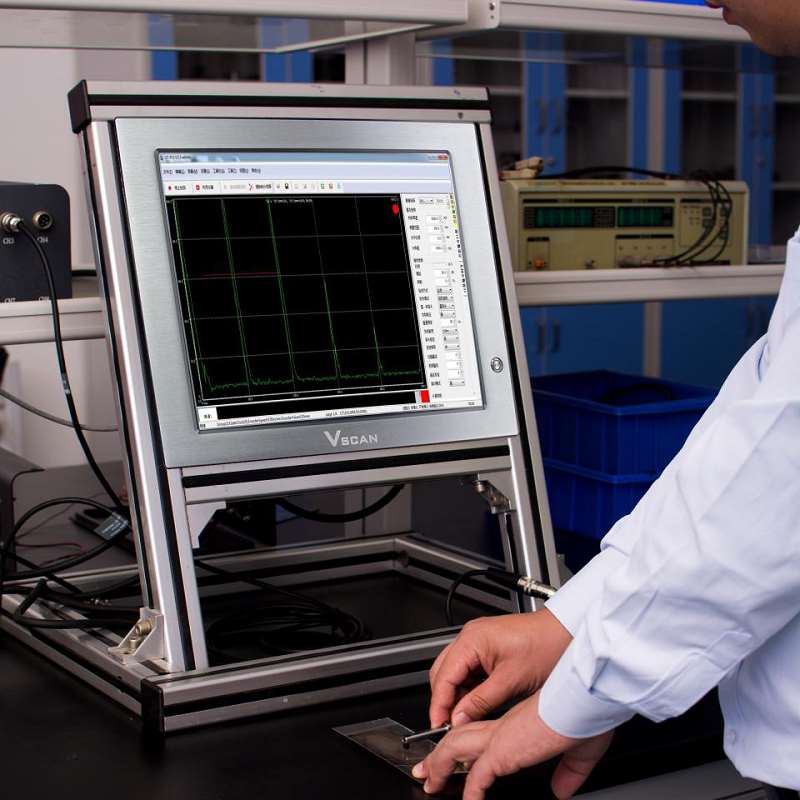

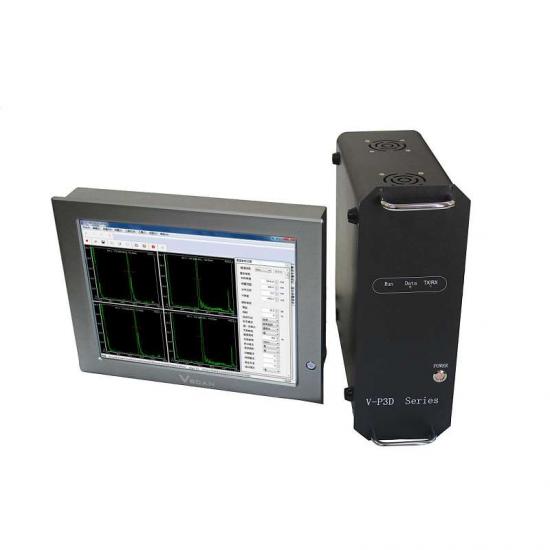

V-P3D-UT Intelligent Ultrasonic Multifunctional Detector

Intelligent Ultrasonic Multifunctional Detector small body with superior quality.

  • Item NO.:

    V-P3D-UT
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Product Detail

V-P3D-UT Intelligent Ultrasonic Multifunctional Detector is mainly used for the detection of metal materials such as pipe, bar, wire, steel plate etc. It can detect, locate, evaluate and diagnose various defects (cracks, inclusions, pores, etc.) inside the workpiece quickly and conveniently without damage. It is a general instrument for on-line / off-line or pre-service / in-service inspection of metal components in automotive, petrochemical, metallurgical, mechanical, aerospace and other industries.

Technical Parameters

Alarm output

12

Start input

12

Coder input

2

Work Temp.

10°C50°C

Relative Humidity

Under 80%

Size

W 360 mm* H 315 mm* T 140 mm

Weight

9kg

Power supply

AC110VAC~220 VAC50 Hz 60 Hz

Detection Channel

1~8

Repeat rate

increment 10 Hz 2000 Hz

Pulse width

25 ns 5000 ns0.1 MHz Adjustable

Damping

50200Ω

Gain

0 dB 110 dB

Receiver bandwidth

0.2 MHz 26.5 MHz,–3 dB

Detection

Full wave, positive half wave, negative half wave, radio frequency wave

System linear

Level:±0.5 % FSW

Resolution

0.25 % FSHAmplifier precision ±1 dB

Restrain

0 % ~ 80 % screen with visual alarm

Amplitude measure

0.25 % 0 % ~ 110 % screen , 0.25 % resolution

Automatic calibration

Sound speed, zero offset, vertical beam (1st bottom echo, or echo to echo), angular beam (range or depth)

Sound speed

635 m/s to 15240 m/s

Zero offset

0 µs 750 µs

Display delay

-59 mm to 13401 mmLongitudinal wave velocity in steel

Refract angle

Increment0.1°/ 0° 90°

Detect Gate

A/B Gate plus bottom wave following gate I

Gate starting point

Variable over the entire display range

Gate width

Variable in the area between the start of the gate and the end of the display range

Gate height

Variable in 2%~95% screen

Alarm

Positive and negative thresholds, small depths (gate 1 and gate 2)
